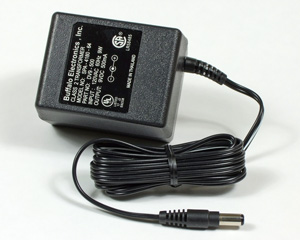

DV9-500 Retired / Upgraded by SPS-1210
Cost Effective Match for Basic IR Systems
Analog Unregulated 500mA Power Supply

Cost Effective Power Supply Specially Selected to Match the Most Common Sized IR Systems



This cost effective power supply was selected by our engineers to match most basic small to medium sized infrared remote control system.

For systems with eight or more repeaters, IR keypads, or with very long repeater to connecting block wiring runs we recommend using our higher power premium SPS-1210 voltage regulated 12Vdc @1,000mA power supply.


  • Selected to match typical 12Vdc basic IR systems
  • Isolation transformer design for floating IR system ground level
  • Small, attractive size easy to install in most locations
  • High build quality for long life
  • 6 foot plug cord with 5.5mm x 2.5mm plug (center = V+)
  • Input: 110-120Vac 50/60Hz — Output: Unregulated 9Vdc @500mA
    (Actually provides ~12.5 Vdc when lightly loaded by a typical basic IR system)
  • USA/CA style plug
  • UL and CSA approvals
